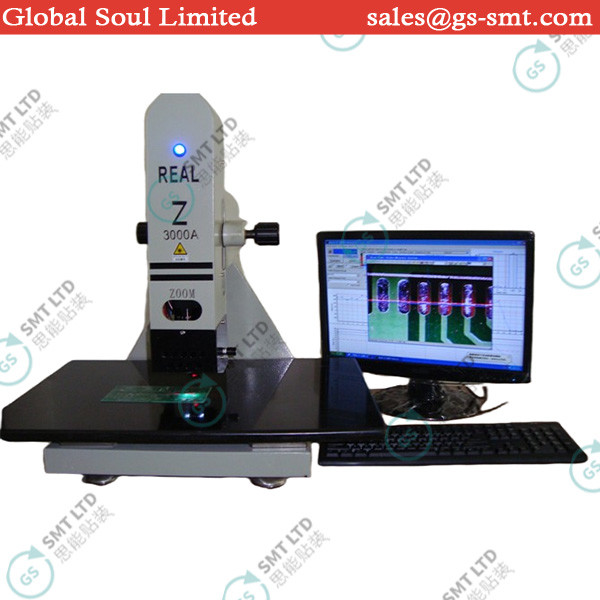

Features:
1. With fully enclosed precision grating ruler as the measurement
benchmark, real-time calibration of measurement results, full
closed-loop feedback, high precision. The measurement does not rely
on the transmission system such as the easily worn screw motor, and
the accuracy is good and the failure rate is low.
2. The relative measurement method is used to eliminate the error
of PCB deformation, which can compensate the error caused by green
oil and copper foil thickness.
3. Large range, can directly measure the double panel, can also
measure in addition to the solder paste such as V-Cut groove depth,
components, BGA tin ball height, etc.
4. Granite measuring platform, wear-resistant, not easy to
deformation, no static electricity, can measure the PCB area is
large.
5. Integrated solid base, good rigidity. Adjustable level damping
foot.
6. Large range of stepless magnification optical lens, high
magnification, suitable for large pad to 0201, 01005, 0.2mm fine
pitch IC, BGA, CSP, etc., strong flexibility.
7. When the measuring laser beam is aligned to the measured
surface, the optical lens automatically focuses on the measured
surface. The focal length stays the same automatically after the
magnification.
8. Laser generator with automatic standby protection, life delay
several times. Easy adjustment of laser brightness.
9. Color camera, easy to identify various features on the PCB
board. You can take pictures and video. Hot-swappable USB port.
10. Long life LED lighting, color can be switched for various
colors of PCB board measurement. Easy to adjust lighting
brightness.
11. Simultaneous monitoring and analysis of several production
lines. It has the function of group management and one-click
switching of the tested products, each production line is counted
separately, and each product can have independent judgment criteria
and option Settings to automatically judge whether it is qualified
or not.
12. Refresh statistical parameters and charts in real time, with
automatic calculation functions such as mean value, standard
deviation, Cpk, defect rate, distribution chart, trend chart and X
bar-R control chart, flexibly set statistical period, and
automatically generate and print complete reports.
13. Optional measuring length, width, Angle, proportion, side
length, area, coverage, volume, weight and can automatically judge
the function.
14. Raw data can be exported in Excel or text format.
15. Automatic storage function, sudden power failure does not lose
data. With a general purpose computer, the installation does not
need to change the hardware, easy replacement.
16. Simple operation and software interface, fast measurement
speed.
